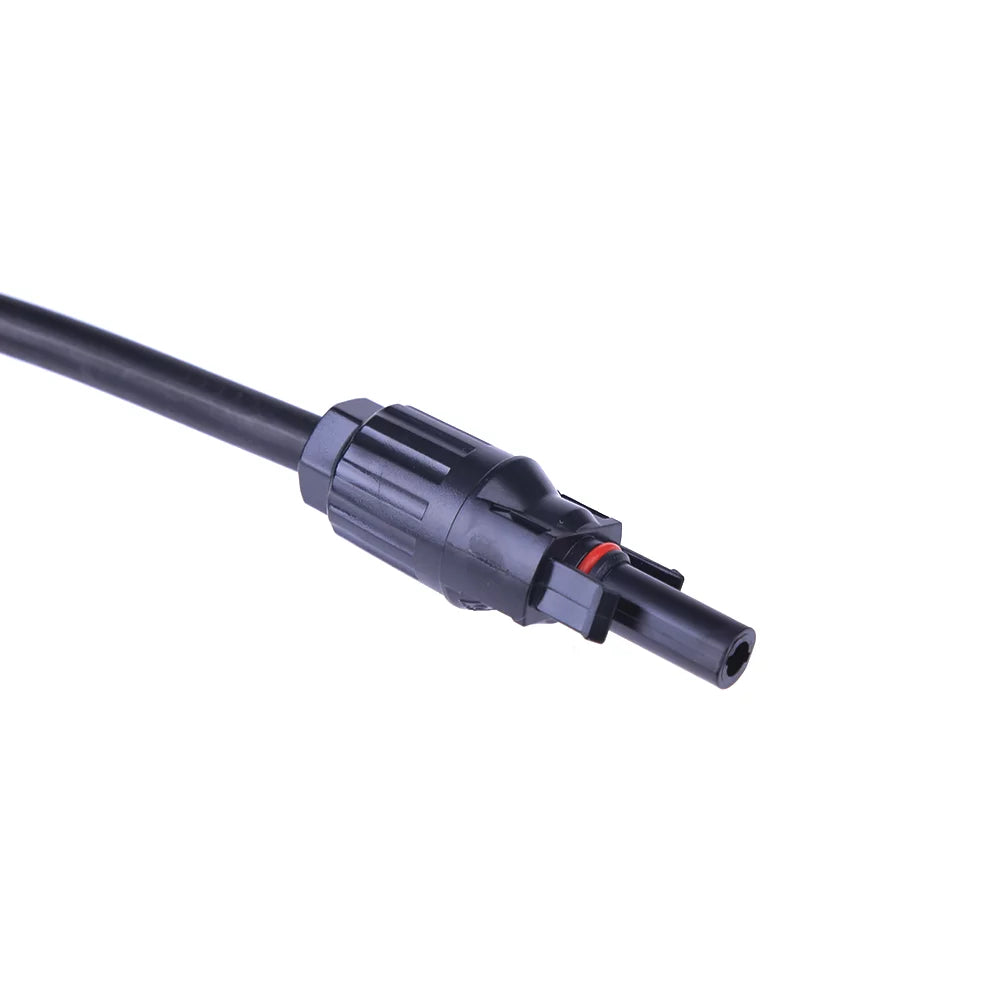

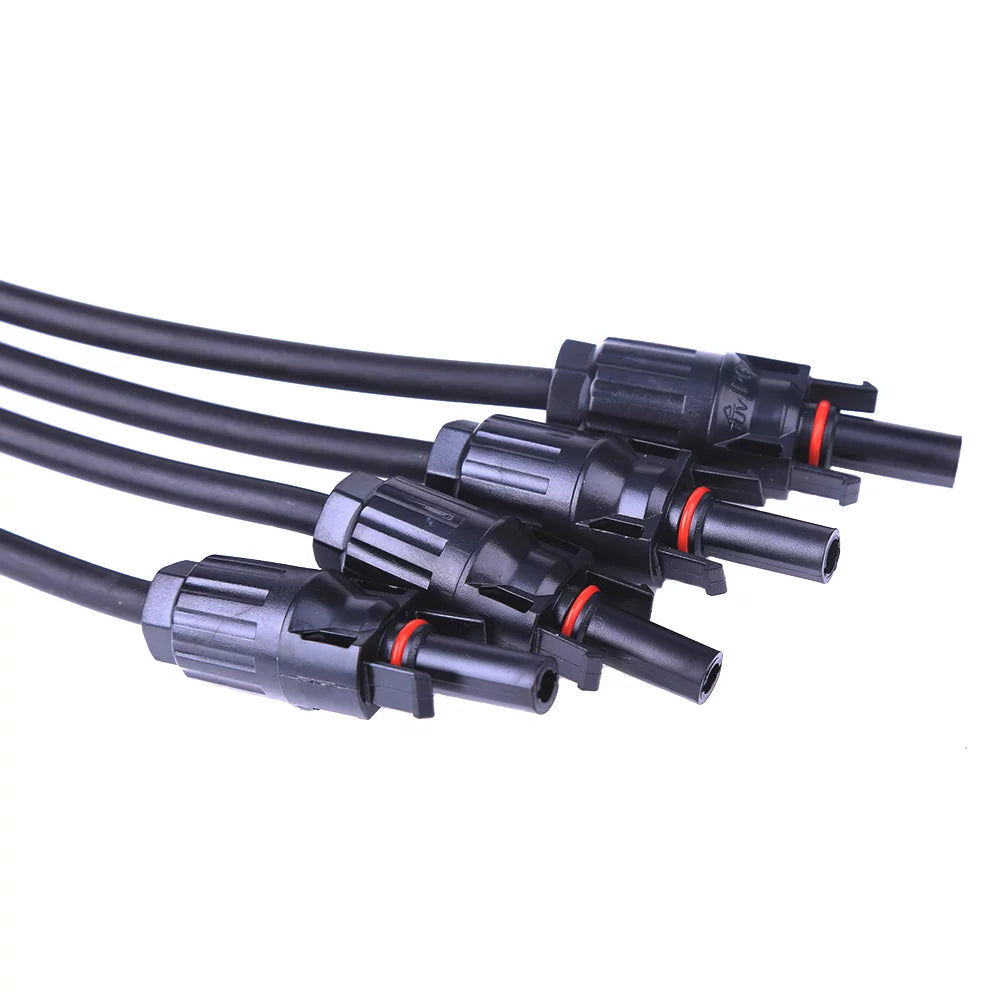

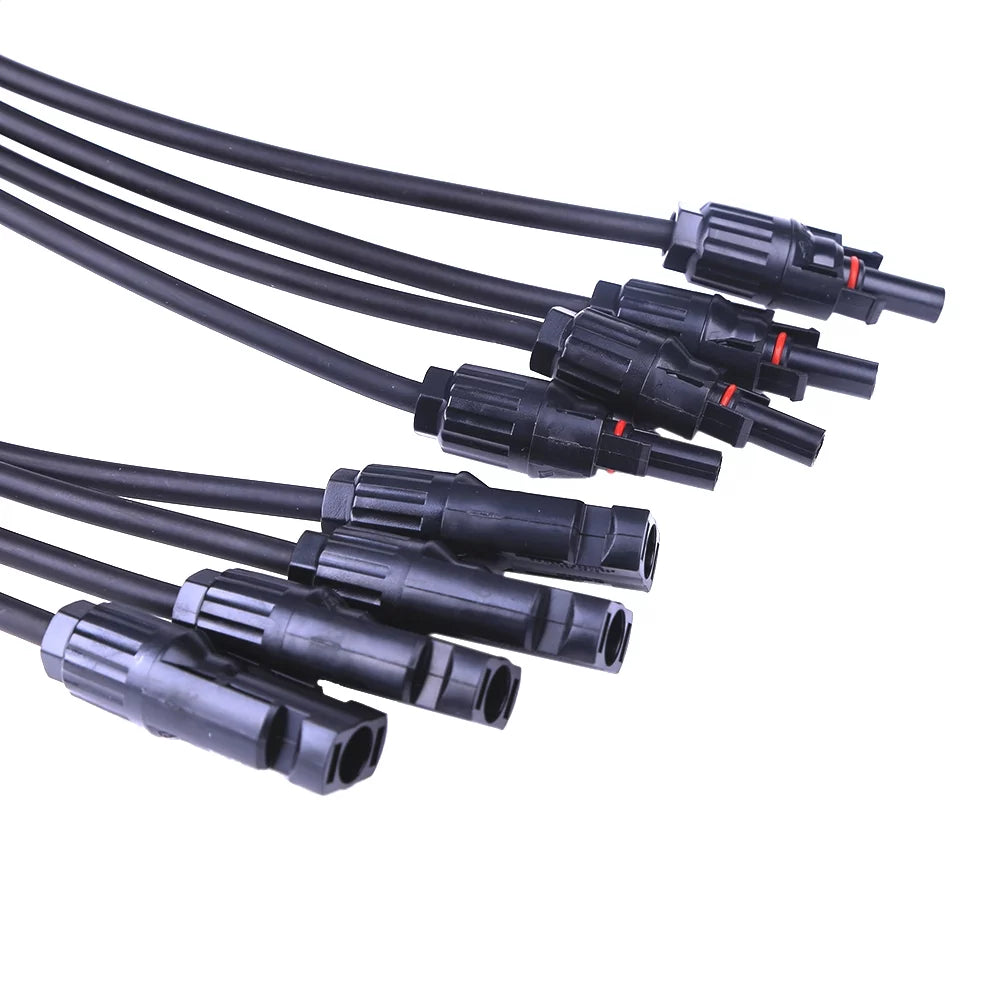

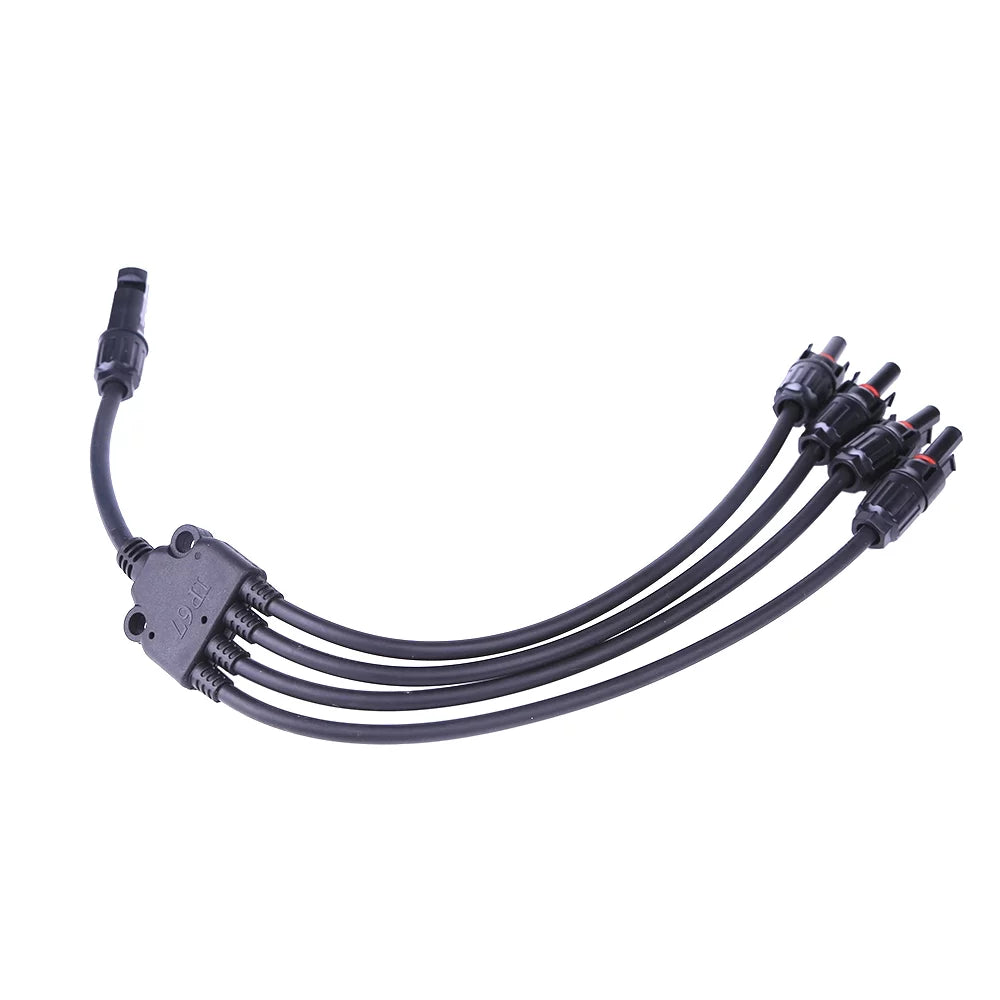

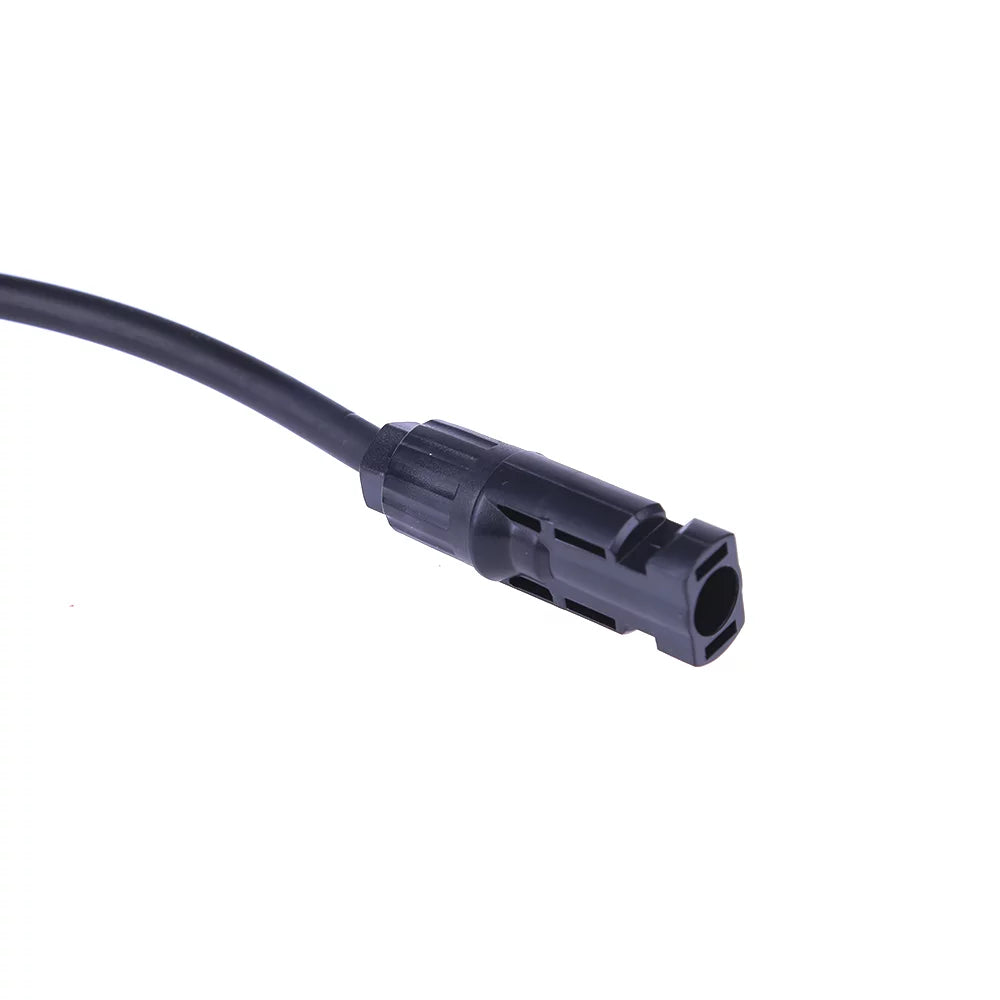

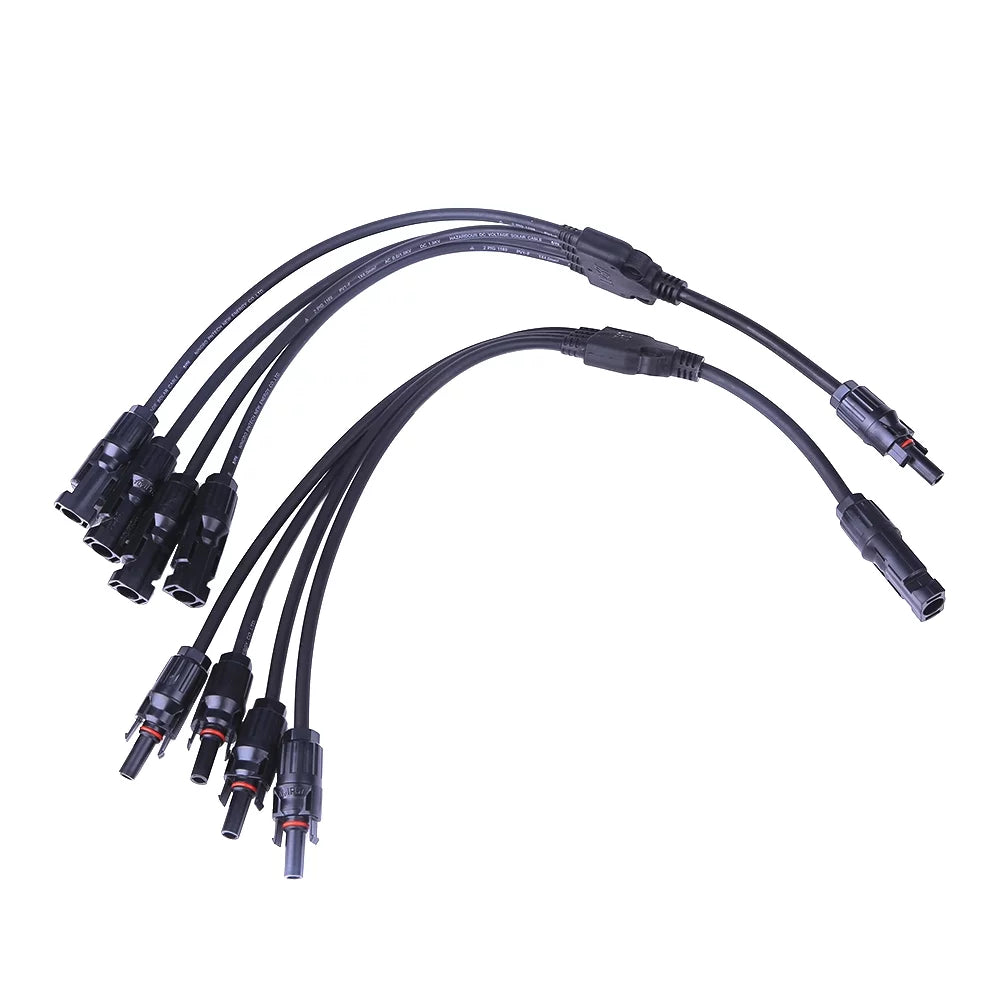

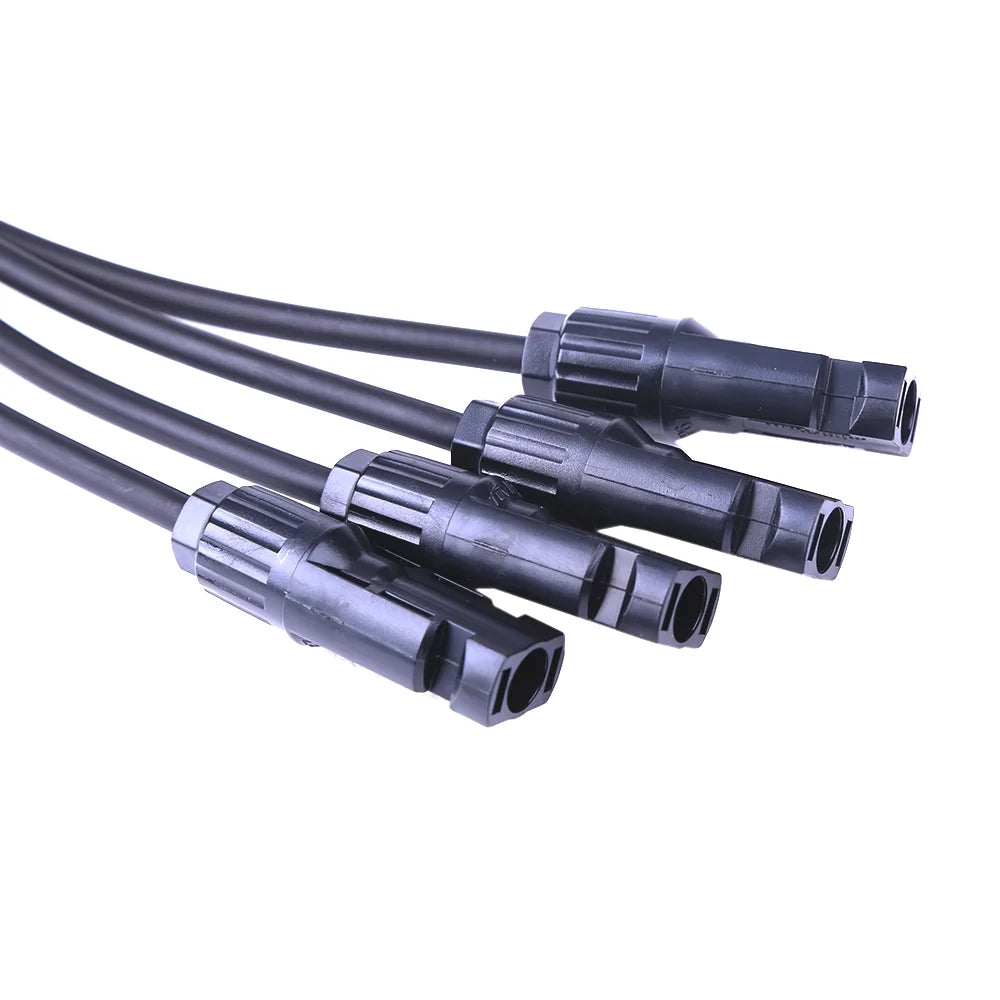

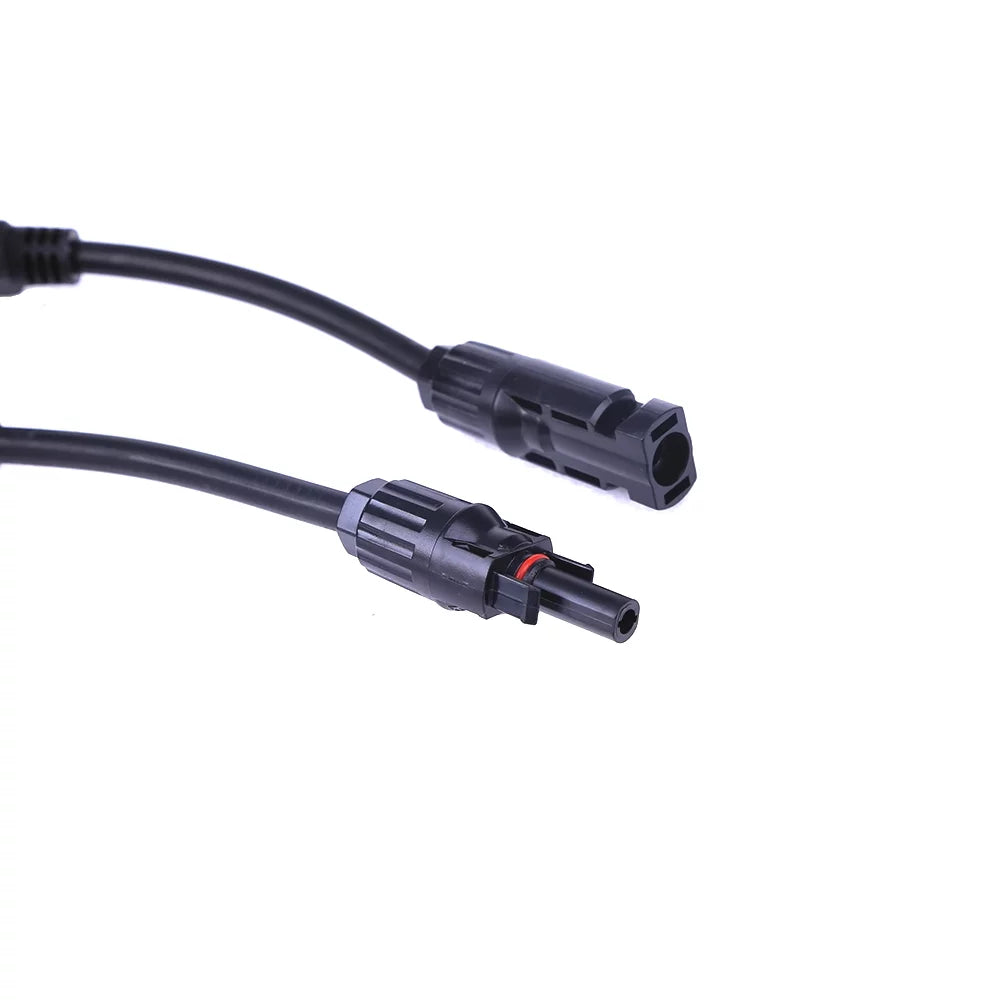

Y Type 1 to 4 MC4 Solar Panel Cable Connectors 30A H787
Sale price
$5.90
Regular price $23.99
Skip to product information
Features: This Y Style MC4 compatible Solar Cable Connector Set is a perfect solution to parallel connect multiple panels together in a solar field, and is typically used in parallel applications It also has the feature of waterproof, so you don't worry about the rain Compatible: Mc4 Double seal rings for better waterproof effect Compatible with PV cables with different insulation diameters It can be used in harsh environment With excellent aging resistance and UV endurance Created seal, design of dust proof Load capability with big current and high voltage Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument Strong pulling force capability Resistance of extra high & low temperature and fireproof Lower contact resistance Specification: Insulation material: PPO Rated current: 20-30A Rated voltage: 1000V(TUV)&600V(UL) Test voltage: 6kV(50Hz,lmin) Typical contact resistance: ?5m? Contact material: Copper, silver plated Degree of protection: IP68 Safety degree: ll Flame class: UL94-V0 Material RTl: 110? Ambient temperature range: -40? until+85? Main cable specification: 6mm2 (AWG10) Branch cable specification: 4mm2 (AWG12) Insertion force: ?50N Withdrawal force: ? 50N Cable length: 74.5cm What is included: 1Pairs Y Type MC4 Connector
Y Type 1 to 4 MC4 Solar Panel Cable Connectors 30A H787
Sale price
$5.90
Regular price $23.99
Shipping calculated at checkout.
