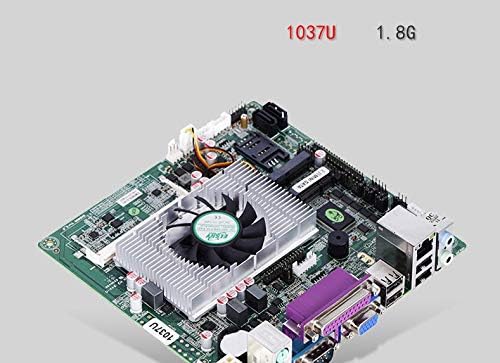

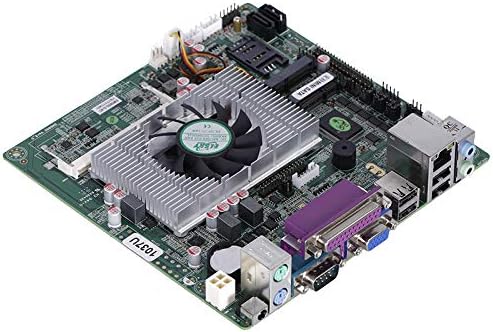

Celeron 1037u Industrial Control Main Board D596

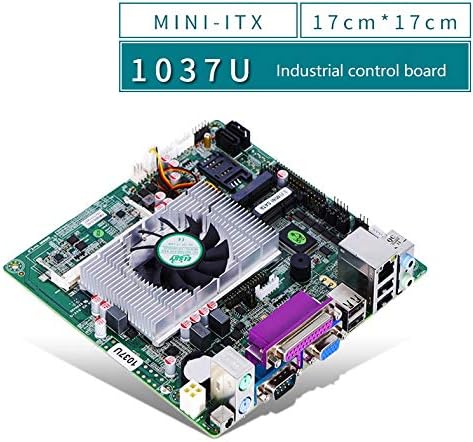

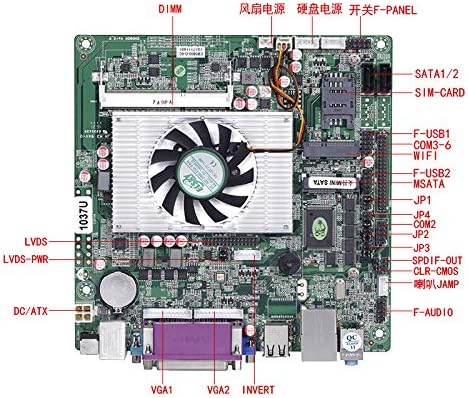

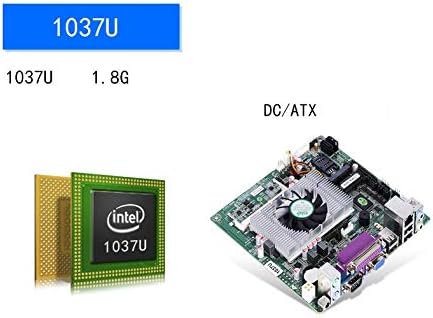

Low power processor 1037u dual core 1.8g supports DDR3 generation 1333 / 1600 memory. The built-in double eight 24 bit LVDS supports 1920 * 1080 resolution and dual screen display. 2 * Mini PCIe, WiFi, 3G & msata. It supports 7 * 24h all-weather operation. 6com and 2COM are optional. 6com supports RS485 / 422, dual network 6com industrial computer can choose ★ on-board LPT printing port and on-board 5W power amplifier. Support dual VGA interface output (optional). Size: Mini TX frame, 170mm * 170mm, thickness: 18mm Processor Celeron 1037u, dual core 1.8g. Low power consumption, fast operation The processor integrates display core and memory controller. Chipset 1037u + hm76 high speed chipset Memory support DDR3 generation 1333 / 1600 memory The display interface integrates HD graphic display core and supports dynamic memory allocation (DVMT), VGA. Built in dual channel 24bit LVDS pin, supporting dual screen display. The video memory does not exceed 512 MB. Hard disk storage 2 * sata2.0 (black). 1 x msata. Transmission speed no more than 3.0 Gbps Network interface 1 * realtec8111e Gigabit RJ45 interface (or dual Gigabit optional) supports network wake-up. Audio interface integrated Realtek alc662 HD digital audio decoder Support line out, MILC in interface, equipped with front pin pin pin. On board 5W power amplifier I / O expansion 7 * USB, high speed USB2.0 controller, 480mbps speed. 2 * RS232 com, 6com optional RS485 optional. Expansion bus 2 * mini-pcie expansion slot, supporting Bluetooth, WiFi, 3G, msata Operating environment power supply: ATX / DC power supply working temperature: - 20 ~ 60 ℃, relative humidity: 5% ~ 95%, no condensation. BIOS AMI BIOS supports write protection. Power on and start-up, timing start-up, intelligent identification of remote switching equipment Operating system Windows XP, Windows 7 - 32 bit, 64 bit. Windows 8,Linux. The system monitor / watchdog supports CPU
